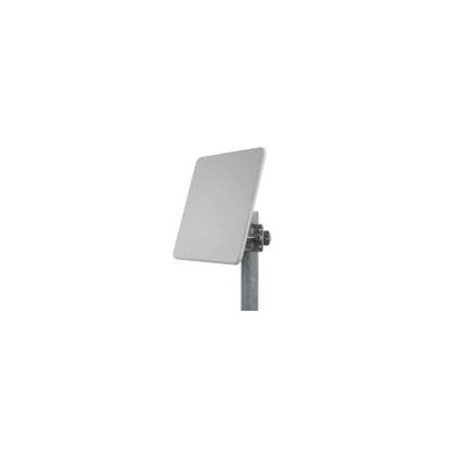

FAN-500N Point-to-point
FAN-500N is a single-band 2-element 12 degree point-to-point antenna for use in 802.11n MIMO applications. The antenna provides coverage of 4.9 to 5.9 GHz in a single antenna radome. The light weight and durable construction and UV-protected radome made of plastic allow both indoor and outdoor installation. Usage scenarios include:
- Building to building bridging for use with FAP-222B.
- Coverage to clients along narrow corridor.
- General Information
- Manufacturer
- Fortinet, Inc
- Manufacturer Website Address
- http://www.fortinet.com
- Brand Name
- Fortinet
- Product Line
- FortiAP
- Product Type
- Antenna
- Technical Information
- Directivity
- Directional
- Frequency Band Type
- SHF
- Operating Frequency Range
- 4.9 GHz to 5.9 GHz
- Impedance
- 50 Ohm
- Survival Wind Speed
- 55555.56 mm/s
- Features
- Water Proof
- UV Protected
- Interfaces/Ports
- Connector Type
- N-Type
- Physical Characteristics
- Height
- 304.8 mm
- Width
- 304.8 mm
- Diameter
- 40.6 mm
- Form Factor
- Pole/Wall
- Weight (Approximate)
- 900 g
- Miscellaneous
- Application/Usage
- Outdoor
- Wireless Data Network
- Compatibility
Fortinet FAP-222B Wireless Access Point
