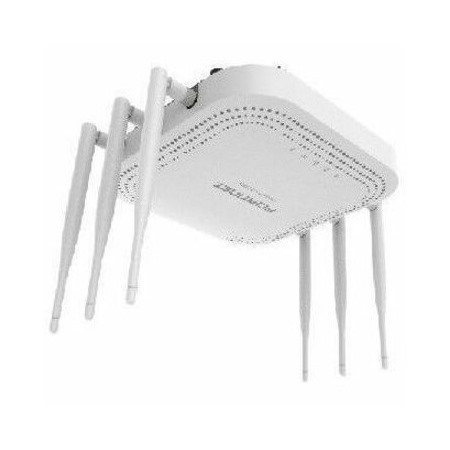

The FortiAP U321EV and U323EV access points support the latest 802.11ac Wave 2 standard, with a maximum data rate of up to 2.6 Gbps. Additional features include 802.11ac explicit transmit beamforming (TxBF), MU-MIMO built in BLE radio for location services and more.
- General Information
- Manufacturer
- Fortinet, Inc
- Manufacturer Website Address
- http://www.fortinet.com
- Brand Name
- Fortinet
- Product Line
- FortiAP
- Product Type
- Wireless Access Point
- Technical Information
- Wireless LAN Standard
- IEEE 802.11a/b/d/e/g/h/i/j/k/n/v/ac/x
- Network Band
- Dual Band
- Frequency Band
- 2.40 GHz
- 5 GHz
- Total Number of Antennas
- 6
- Number of External Antennas
- 6
- Indoor/Outdoor
- Indoor
- Wireless Transmission Speed
- 2.98 Gbit/s
- MIMO Technology
- Yes
- MIMO Type
- Multi User MIMO
- Beamforming Technology
- Yes
- Data Encryption
- Yes
- Encryption Standard
- WPA
- WEP
- EAP-TLS
- MSCHAPv2
- PEAPv1
- EAP-GTC
- EAP-SIM
- EAP-AKA
- EAP-FAST
- WPA2
- Interfaces/Ports
- Ethernet Technology
- Gigabit Ethernet
- Number of Network (RJ-45) Ports
- 2
- PoE PD Port
- Yes
- USB
- Yes
- Management Port
- Yes
- Network & Communication
- Wi-Fi Generation
- Wi-Fi 5
- Physical Characteristics
- Form Factor
- Ceiling Mountable
- Wall Mountable
- Rail-mountable
- Antenna Form Factor
- External
- Height
- 42.9 mm
- Width
- 217.9 mm
- Depth
- 217.9 mm
- Weight (Approximate)
- 1.02 kg
